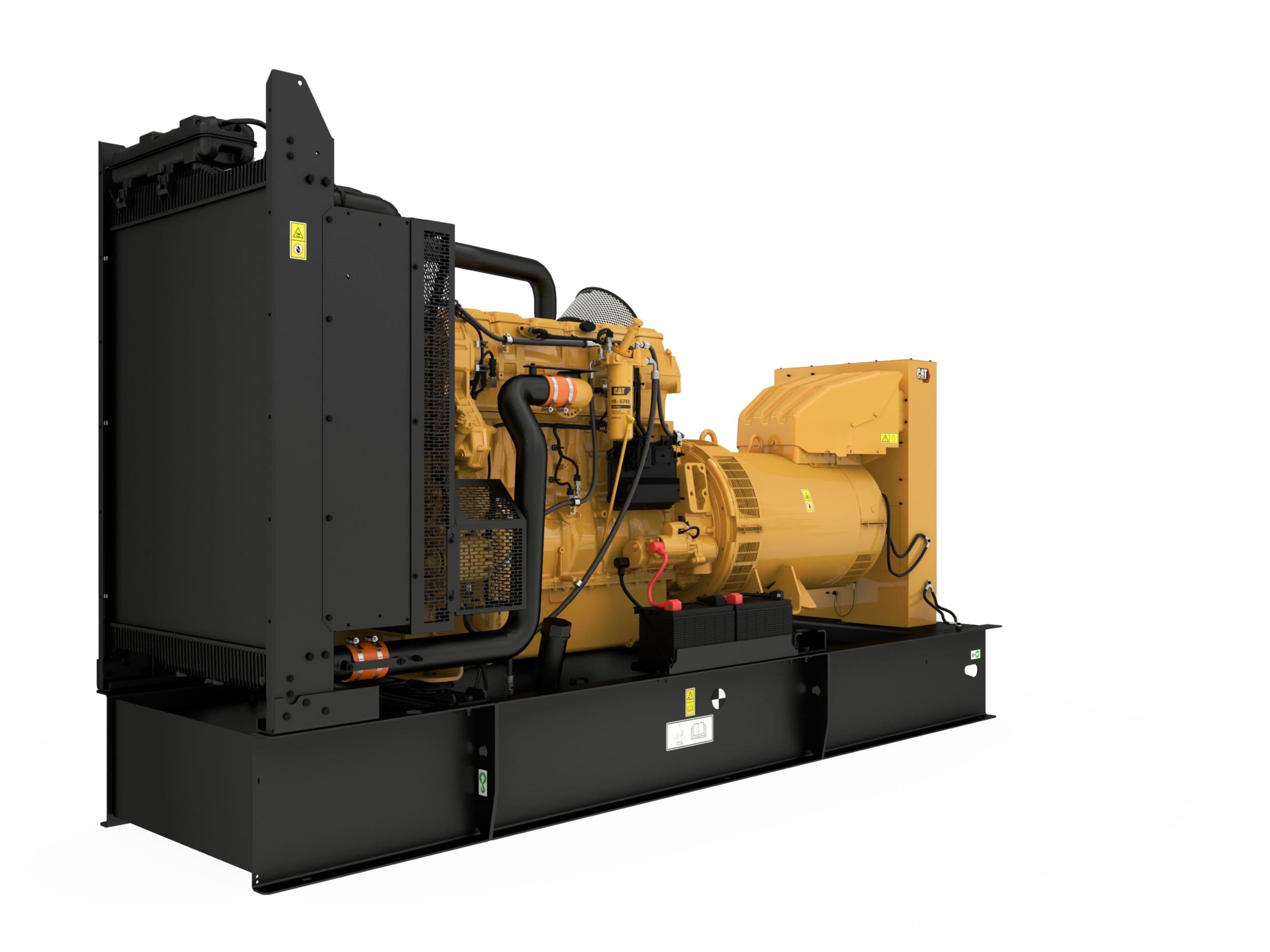

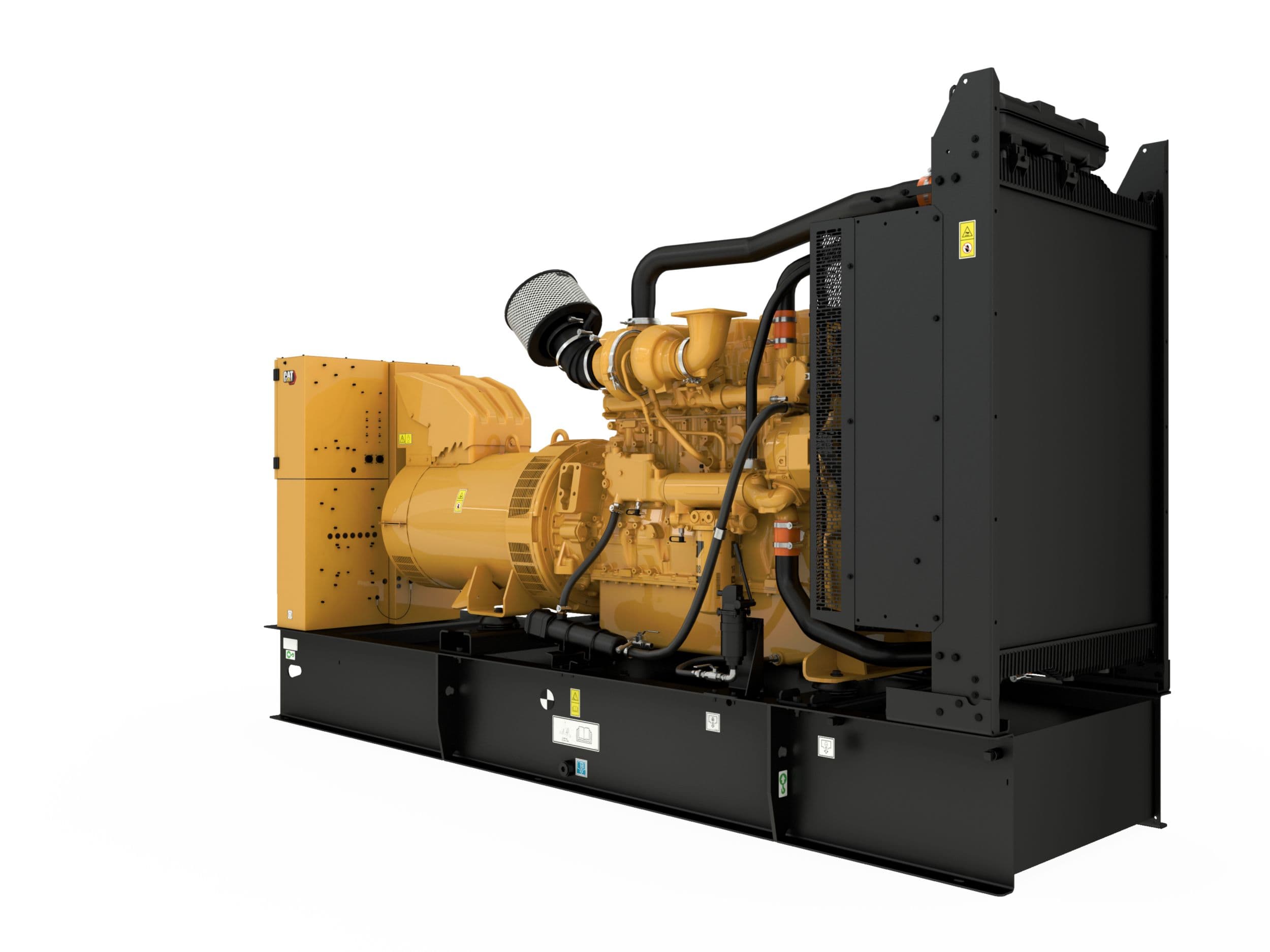

The C15 diesel generator sets have been developed for your mission critical, standby and prime applications. Producing reliable power from 365 to 550 kVA at 50 Hz, meeting ISO 8528-5 transient response requirements and built to accept 100 % rated load in one step. The engines are certified Low Fuel Consumption, U.S. EPA Certified for Stationary Emergency Use Only (Tier 2 or Tier 3 Nonroad Equivalent Emission Standards), EU Stage IIIA Nonroad Emission Standards, China Nonroad III Emission Standards Emissions / Fuel Strategy.
Diesel Generator Sets
Bore
137.2MM
Stroke
171.4MM
Displacement
15.2L
Overview
Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.
Electric Power Ratings GuideDE500E0, 50 Hz 550 kVA, EU III Certified Emissions Compliant Spec SheetDE500E0, 50 Hz 500 kVA, Non Certified Emissions Spec SheetC15 50 Hz 360 ekW, Low BSFC Emissions Compliant Spec SheetC15 50 Hz 400 ekW, Low BSFC Emissions Compliant Spec SheetC15 50 Hz 440 ekW, Low BSFC Emissions Compliant Spec Sheet500 - 550 kVA 50/60 Hz Spec Sheet
Specifications
Engine Specifications
- Bore137.2mm
- Stroke171.4mm
- Displacement15.2l
Attachments
COMPATIBLE WITH

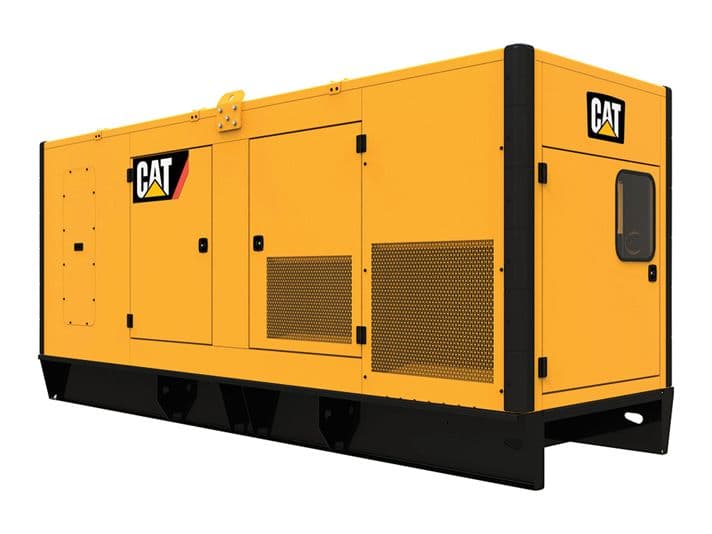

C15 Sound Attenuated Enclosure 50 and 60 Hz
These sound attenuated, factory installed enclosures incorporate internally mounted super critical level silencers, designed for safety and aesthetic value on integral fuel tank base or optional dual wall integral fuel tank base for total fluid containment. These enclosures are of extremely rugged construction to withstand exposure to the elements and provide weather protection

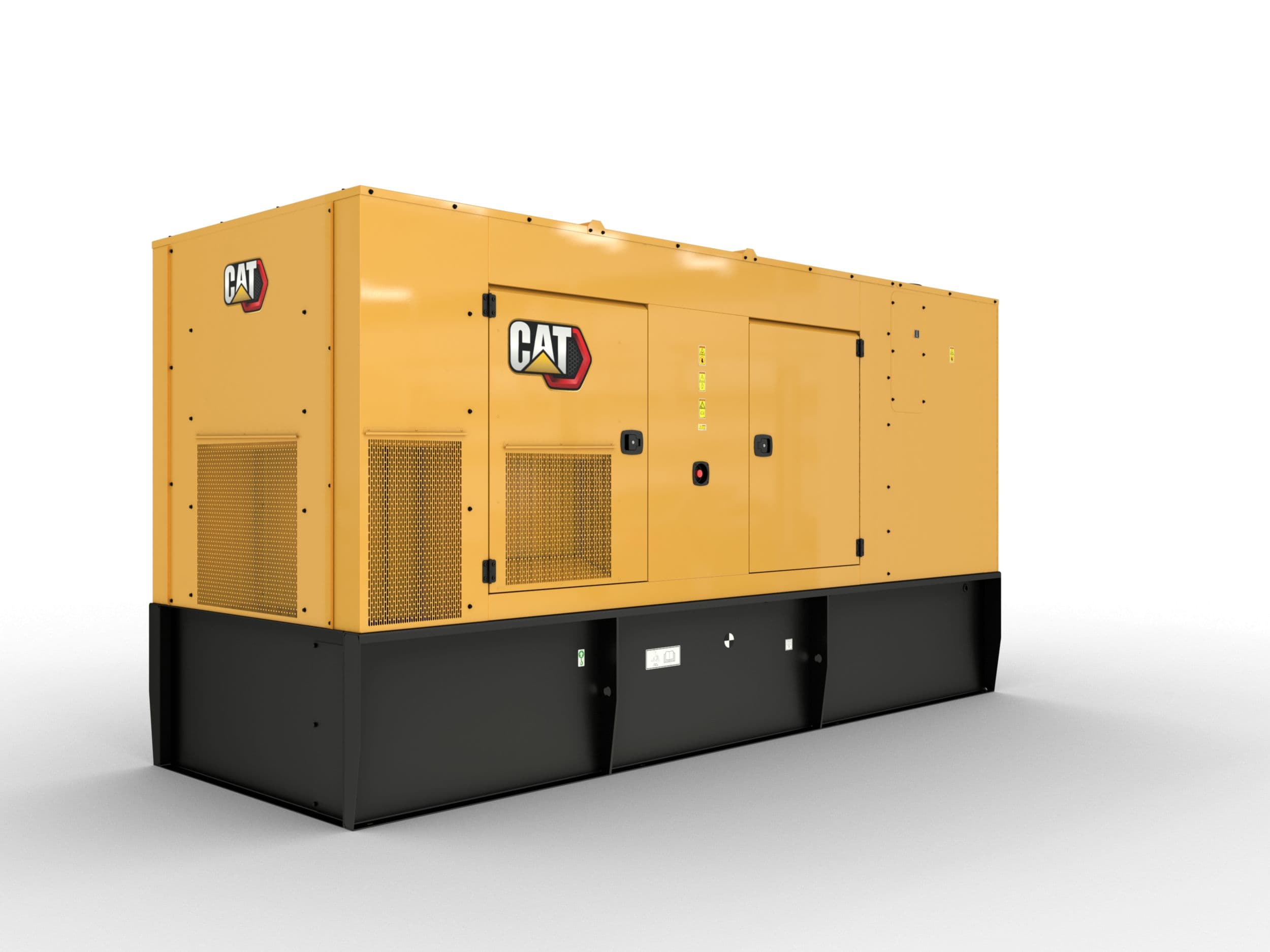

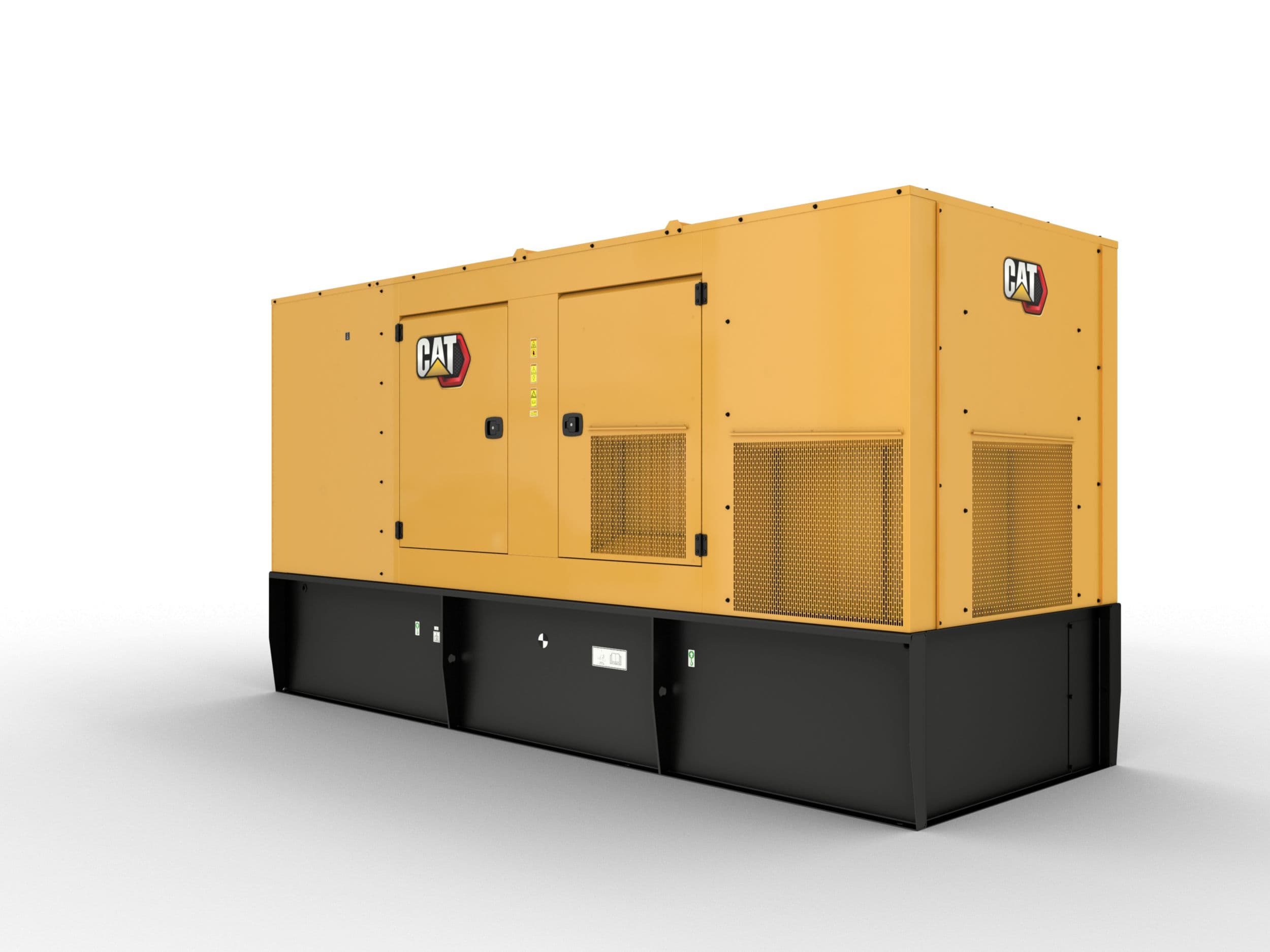

C13, C15, C18 SA enclosure. 350-600 kW 60 Hz
These sound attenuated, factory installed enclosures incorporate internally mounted super critical level silencers, designed for safety and aesthetic value on integral fuel tank base or optional dual wall integral fuel tank base for total fluid containment. These enclosures are of extremely rugged construction to withstand exposure to the elements and provide weather protection.

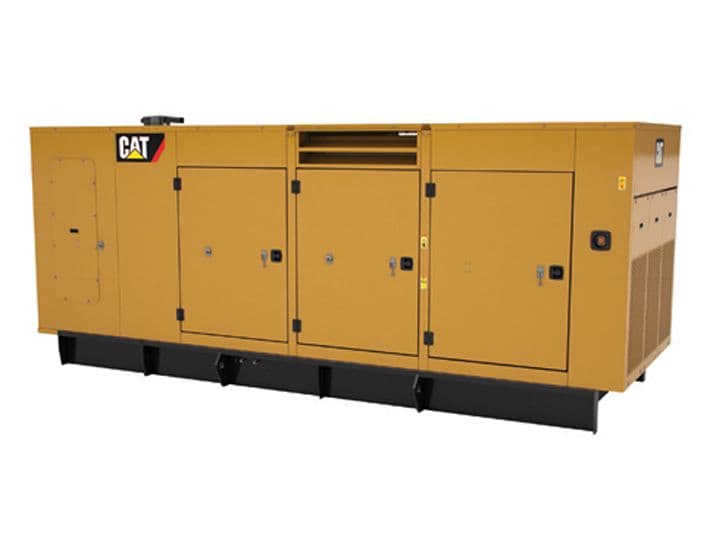

C13, C15, C18 WP Enclosure. 350-600 kW 60 Hz
Extremely durable and robust, the enclosures are designed to resist corrosion and handling damage with the ability to withstand rough handling common on many construction sites. Developed through continuing research and development by our specialist engineers, the enclosures are fully weatherproof and incorporate internally mounted exhaust silencers.
